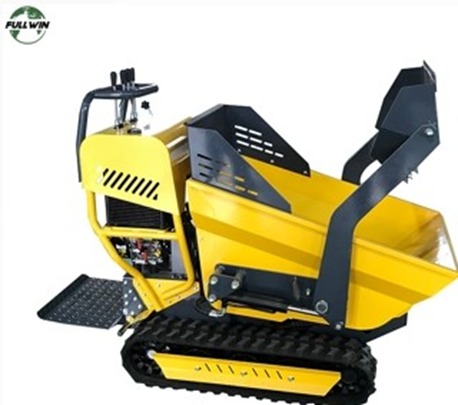

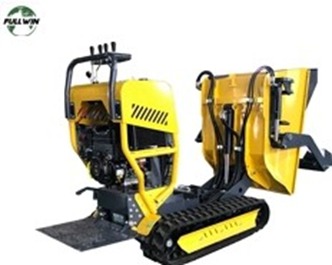

Mini dumper

A Mini Dumper is a compact, versatile, and powerful machine designed for transporting and unloading heavy loads such as soil, sand, gravel, and construction materials with ease. Its small size allows it to access narrow spaces where larger machinery cannot operate, making it ideal for construction sites, landscaping projects, agriculture, and industrial use.

Equipped with a robust engine and strong load-bearing capacity, the mini dumper ensures efficient material handling while reducing manual labor. Its simple controls, durable structure, and high maneuverability make it a reliable choice for both professional contractors and small-scale projects.

Category:

Description





FYS00 Mini Dumper Specifications

FYS00 Mini Dumper — Technical Specifications

Specification FYS00 (Model 1) FYS00 (Model 2)
Machine FYS00 mini dumper FYS00 mini dumper
Engine Briggs & Stratton Briggs & Stratton
Optional Engine Koop Koop
Machine Weight 520 kg 400 kg
Max. Loading Weight 500 kg 500 kg
Machine Size 1566 × 870 × 1660 mm 1517 × 870 × 1278 mm
Dumper Size 0.22 m³ (1040 × 730 × 590 mm) 0.22 m³ (1040 × 730 × 590 mm)
Lifting & Tipping Height 1350 mm
Hydraulic Oil Tank Capacity 11 L 7 L
Gradeability 20° 20°
Min. Ground Clearance 85 mm 85 mm
Track Center Distance 520 mm 520 mm
Walking Speed 1.7 / 3.5 km/h 1.7 / 3.5 km/h
Min. Turning Radius 1 m 0.95 m
Integrated Valve Brand Beifang Beigang
Function Control of vehicle stabilization and switching between high and low vehicle speeds
Drive Motor Displacement 200 cc 200 cc
Maximum Working Pressure 16 MPa 20 MPa
Max. Torque 510 Nm 505 Nm
