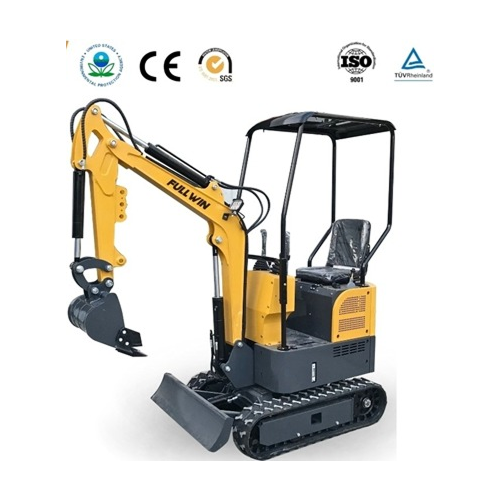

AVl Mini Excavator

Engine Options:
Gasoline Engine:
Briggs & Stratton I EPA/ Euro 5
Rato I EPA/ Euro 5
Diesel Engine:
Koop I Euro 5
Product Dimensions:
Length: 2775mm /109.5 inches
Width: 940mm / 37 inches
Height: 2219mm / 87.5 inches
Euro 5/EPA Engine:
FWlOT features Rato, Koop, and Briggs & Stratton engines, ail meeting EPA and Euro 5 standards for top performance and eco-compliance.
Zero Tail Design:
The FWlOT’s zero tail design ensures safer operation and greater convenience in tight spaces.
Mechanical Pilot:
Low maintenance cost, simpler design, energy-efficient, and reliable.
Versatile Attachments:
Compatible with various attachments, the FWl0T easily handles a wide range of tasks, making daily work effortless

Category:

Description






Mini Excavator — Specifications

Mini Excavator — Technical Specifications

Specification Value
Emission Standard EPA & Euros
Track Width 180 mm
Rated Power 7.6 – 11 kW
Max Digging Height 2610 mm
No. of Cylinders
Max Unloading Height 1850 mm
Operation Weight 1000 kg
Max Digging Depth 1750 mm
Control Type Mechanical Control
Max Digging Radius 2850 mm
Bucket Capacity 0.025 m³ / 720 kg
Max. Vertical Digging Depth 1375 mm
Standard Bucket Width 400 mm
Max Lifting Height of Blade 345 mm
Track Ground Length 1230 mm
Max Cutting Depth of Blade 255 mm
Min. Ground Clearance 380 mm
Radius of Rotation 1330 mm
Overall Dimensions 2775 × 940 × 2219 mm
Hydraulic System Pressure 18 MPa
