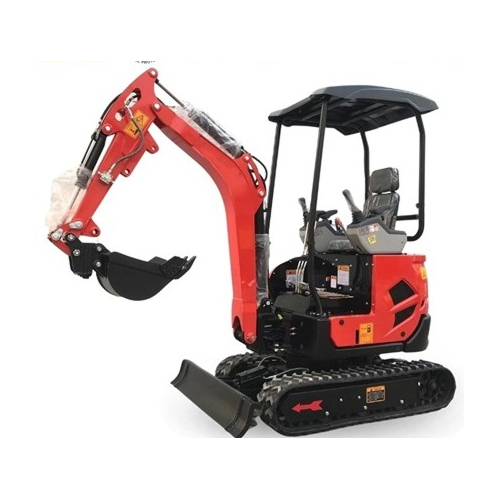

AV18 Mini Excavator

Engine Options:
Gasoline Engine:
• Briggs & Stratton I EPA
Diesel Engine:
• Kubota I EPA/Euro 5
• Laidong I Euro 5
Product Dimensions:
Length:3319mm /130.67 inches
Width:1100mm / 43.3 inches
Height: 2292mm / 90.24 inches
Euro 5/EPA Engine:
FW18H features by Briggs & Stratton, Kubota, and Laidong engines, ail meeting EPA and Euro 5 emission standards for superior performance and eco-compliance
Hydraulic System:
FW18H Equipped with swing boom and the hydraulic system, ensures higher efficiency and more responsive operation.
Ergonomie Operator Seat:
The driver’s seat is designed with ergonomies in minci, offering a luxurious and comfortable operating cabin for enhanced productivity
Versatile Attachments:
Compatible with various attachments, the FW18H easily handles a wide range oftasks, making daily work effortless
Optional Features:
Retracktable Chassis
High/Low Speed
Closed Cabin
Air Conditioner
Heater
Steel Tracks

Category:

Description





Mini Excavator — Specifications

Mini Excavator — Technical Specifications

Specification Value Specification Value
Engine Kubota / Briggs & Stratton / Laidong Emission Standard EPA & Euro 5
Swing Radius 820 mm Rated Power 10.2 – 18.8 kW
No. of Cylinders 2–3 Track Width 230 mm
Max. Digging Height 2900 mm Operation Weight 1800 kg
Max. Dumping Height 1880 mm Control Style Hydraulic Pilot Control
Max. Digging Depth 1900 mm Standard Bucket Width 400 mm
Max. Vertical Digging Depth 1800 mm Standard Bucket Capacity 0.04 m³
Max. Digging Radius 3200 mm Track Ground Length 143 mm
Max. Lifting Height of Blade 280 mm Gradeability 30°
Max. Cutting Depth of Blade 265 mm Overall Dimensions (L×W×H) 3319 × 1100 × 2292 mm
Fuel Tank Capacity 15 L
