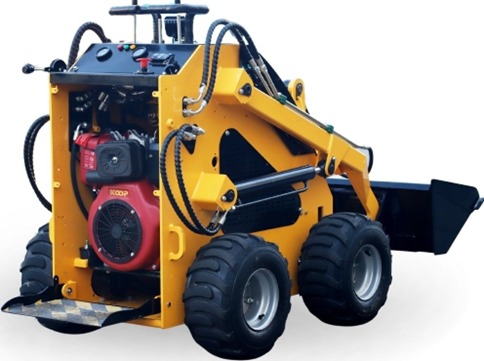

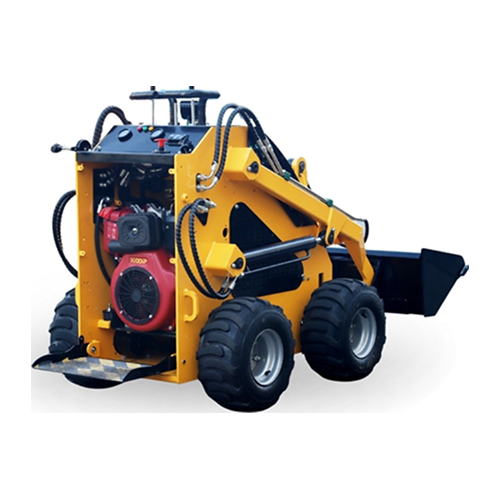

AV 390

AV 390
• EPA/EURO 5 ENGINE
• COMPACT & UGHTWEIGHT
• SAFE OPERATION
• EFFICIENT WORK

Engine Options:
Gasoline Engine:
• Briggs & Stratton I EPA/ Euro 5
• Rato I EPA/ Euro 5 Diesel Engine:
• Koop I Euro 5
Product Dimensions:
Length: 2700mm / 82.68 inches
Width: 7050mm / 47.34 inches
Height: 1300mm / 57.78 inches
Tires or Tracks:
Selectable options for diverse terrain adaptability.
Multiple Attachement:
Compatible with diverse tools for varied operational needs.
Hose Protection:
Prevents hydraulic hases damage during operation
Easy Operation:
Simplifies usage for enhanced efficiency.
Simple Sturcture:
Simplified design for enhanced serviceability, easy to maintain.
Stable Design:
High-durability shock-absorbing pedals, ergonomie standing operation, and wide visibility.

Category:

Description





Machine Specifications

Machine — Technical Specifications

Specification Value Specification Value
Emission Standard EPA & Euro 5 Max. Dump Angle at Full Height 34°
Rated Power 7.6 – 11 kW No. of Cylinders
Rated Speed 3000 rpm Travel Speed 0 – 6 km/h
Operation Weight 900 kg Bucket Capacity 0.12 m³
Bucket Width 1000 mm Rated Load Capacity 200 kg
Max. Load Capacity 300 kg Max. Breakout Force 35 kN
Hydraulic System Pressure 17 – 21 MPa Fuel Tank Capacity 5 L
Tire Specification 15 × 72 mm Wheelbase 850 mm
Ground Clearance 150 mm Rear Overhang 280 mm
Track Width (Standard Tire) 720 mm Overall Width (Standard Tire) 1000 mm
Dumping Height 1510 mm Dumping Reach 450 mm
Overall Dimensions 2100 × 1050 × 1300 mm
