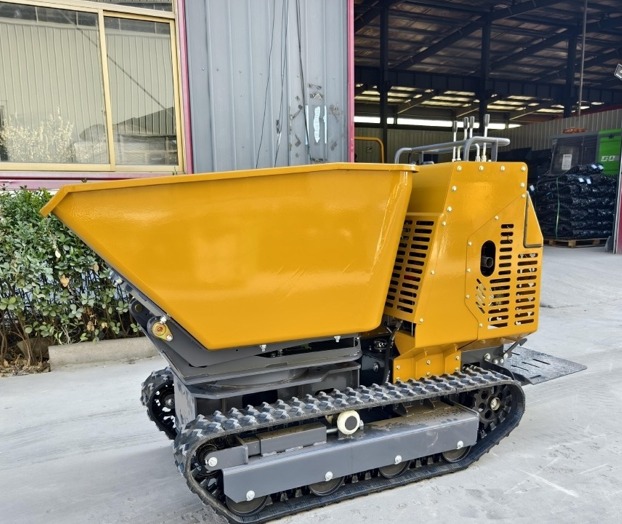

Mini dumper
A Mini Dumper is a compact, versatile, and powerful machine designed for transporting and unloading heavy loads such as soil, sand, gravel, and construction materials with ease. Its small size allows it to access narrow spaces where larger machinery cannot operate, making it ideal for construction sites, landscaping projects, agriculture, and industrial use.
Equipped with a robust engine and strong load-bearing capacity, the mini dumper ensures efficient material handling while reducing manual labor. Its simple controls, durable structure, and high maneuverability make it a reliable choice for both professional contractors and small-scale projects.
| Specification | FYS00 (Model 1) | FYS00 (Model 2) |
|---|---|---|
| Machine | FYS00 mini dumper | FYS00 mini dumper |
| Engine | Briggs & Stratton | Briggs & Stratton |
| Optional Engine | Koop | Koop |
| Machine Weight | 520 kg | 400 kg |
| Max. Loading Weight | 500 kg | 500 kg |
| Machine Size | 1566 × 870 × 1660 mm | 1517 × 870 × 1278 mm |
| Dumper Size | 0.22 m³ (1040 × 730 × 590 mm) | 0.22 m³ (1040 × 730 × 590 mm) |
| Lifting & Tipping Height | 1350 mm | – |
| Hydraulic Oil Tank Capacity | 11 L | 7 L |
| Gradeability | 20° | 20° |
| Min. Ground Clearance | 85 mm | 85 mm |
| Track Center Distance | 520 mm | 520 mm |
| Walking Speed | 1.7 / 3.5 km/h | 1.7 / 3.5 km/h |
| Min. Turning Radius | 1 m | 0.95 m |
| Integrated Valve Brand | Beifang | Beigang |
| Function | Control of vehicle stabilization and switching between high and low vehicle speeds | |
| Drive Motor Displacement | 200 cc | 200 cc |
| Maximum Working Pressure | 16 MPa | 20 MPa |
| Max. Torque | 510 Nm | 505 Nm |
