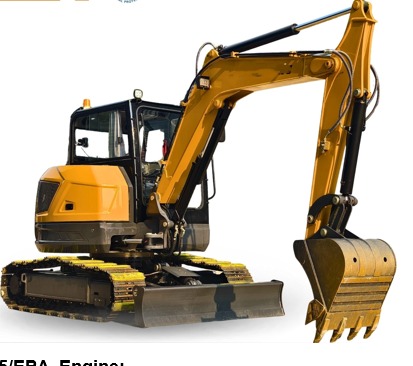

AV3Q Mini Excavator
Engine Options:
Diesel Engine:
- Kubota I EPA/Euro 5
Product Dimensions
Length: 4250mm /1167.32 inches Width:1650mm / 64.96 inches Height: 2500mm / 98.42inches
Premium Components:
Gear Pump: Bosch Rexroth/Le Hydraulix
Traveling Motor: LKC Hydraulic
Swing Motor: LKC Hydraulic
Euro 5/EPA Engine
FW30J Equipped With Kubota D1105 engines, all meeting EPA and Euro S standards for top performance and eco compliance.

Hydraulic System
FW30J Equipped with swing boom and the hydraulic system, ensures higher efficiency and more responsive operation.

Durable Construction
Built with high-strength manganese steel for durability and featuring a zero-tail design for enhanced safety during operation.

Luxury Driver Seat
Spacious, ergonomie seat with liftable control handles for easy access, and a hydraulic self-locking anti-slip design for safe, comfortable operation.

Optional Features
- Retracktable Chassis
- High/Low Speed
- Closed Cabin
- Air Conditioner
- Heater
- Piston Pump
- Steel Tracks

AV3Q Specifications
Specification | Value | Specification | Value |
---|---|---|---|
Engine | Kubota D1105 | Emission Standard | EPA / Euro 5 |
Rated Power | 14 kW | Fuel Tank Capacity | 23 L |
No. of Cylinders | 3 | Hydraulic Tank Capacity | 24 L |
Control Style | Hydraulic Pilot Control | Hydraulic System Pressure | 21 MPa |
Operating Weight | 3000 kg | Max. Digging Height | 4427 mm |
Min. Ground Clearance | 286 mm | Max. Dumping Height | 3005 mm |
Standard Bucket Capacity | 0.1 m³ | Max. Digging Depth | 2830 mm |
Track Grounding Length | 1565 mm | Max. Vertical Digging Depth | 2530 mm |
Travel Speed | 2.6 km/h | Max. Digging Radius | 4835 mm |
