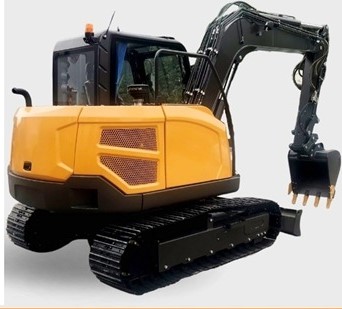

AV65 Mini Excavator

Engine Options:

Diesel Engine:

  • Kubota I EPA/Euro 5 Product Dimensions :

Length: 5940mm / 233.86 inches
Width:1880mm / 02 inches
Height: 2600mm /102.36 inches

  • Premium Components:

Multiway Valve: LonKing Gear Pump: Lonking Traveling Motor: LonKing Swing Motor: Lonking

Euro 5/EPA Engine

FW6SJ Equipped With Kubota V2607 and Yanmar 4TNV94L engines, meeting EPA and Euro S standards for top performance and eco-compliance.

Premium Operation

FW6SJ cornes standard with piston pump and high/low speed, delivering more responsive contrai and higher efficiency.

Durable Construction

Built with high-strength manganese steel for durability and featuring a zero-tail design for enhanced safety during operation.

Luxury & Safe Cabin

Spacious, ergonomie cabin with front protective mesh ensures a comfortable driving experience and enhanced safety during operation.

Optional Features

• Closed Cabin
• Integrated AC & Heating System
• High/Low Speed
• Piston Pump
• Steel Tracks

AV65 Specifications

Machine Specifications
Specification Value Specification Value
Emission Standard EPA & Euros Gradeability 35°
Rated Power 36.2–42.4 kW No. of Cylinders 4
Control Style Hydraulic Pilot Control Track Width 400 mm
Track Gauge 1480 mm Track Grounding Length 2250 mm
Operation Weight 6500 kg Tail Swing Radius 1689 mm
Travel Speed (High/Low) 4.4 / 2.4 km/h Front Swing Radius 2985 mm
Swing Speed 0–11 rpm Max. Digging Radius 6728 mm
Bucket Capacity 0.22 m³ Max. Digging Depth 3808 mm
Hydraulic System Pressure 28 MPa Max. Digging Height 5499 mm
Ground Pressure 45 MPa Max. Dumping Height 3845 mm
Overall Dimensions (L×W×H) 5940 × 1880 × 2600 mm Max. Vertical Digging Depth 2983 mm
