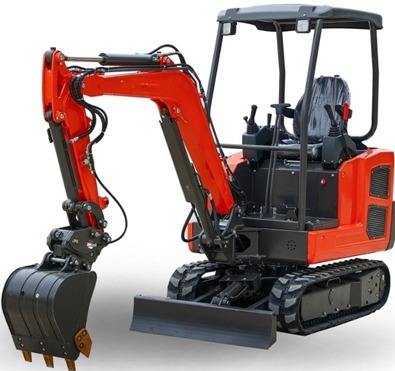

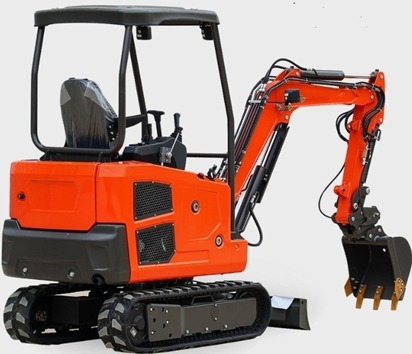

AV2QJ MiniExcavator
Engine Options:
Diesel Engine:
- Kubota D1105 1 EPA/Euro 5
- Laidong 3TE25 1 Euro 5
Product Dimensions
Length: 3865mm /152.16 inches
Width: 7050mm / 43.3 inches
Height: 2215mm / 87.2 inches
Premium Components:
Gear Pump: Bosch Rexroth/Le Hydraulix
Travel Motor: Kerstern Hydraulic
Swing Motor: LKC Hydraulic
Euro 5/EPA Engine
FW20J Equipped With Kubota D1105 engines, ail meeting EPA and Euro S standards for top performance and eco compliance
Hydraulic System
FW20J Equipped with swing boom and the hydraulic system, ensures higher efficiency and more responsive operation.
Durable Construction
Built with high-strength manganese steel for durability and featuring a zero-tail design for enhanced safety during operation.
Luxury Driver Seat
Spacious, ergonomie seat with liftable control handles for easy access, and a hydraulic self-locking anti-slip design for safe, comfortable operation.
Optional Features
- Retracktable Chassis
- High/Low Speed
- Closed Cabin
- Air Conditioner
- Heater
- Piston Pump
- Steel Tracks
AV20J Specifications
| Specification | Value | Specification | Value |
|---|---|---|---|
| Engine | Kubota D1105 / Laidong 3TE25 | Emission Standard | EPA & Euros |
| Rated Power | 14 kW (79 HP) | Tail Swing Radius | 7725 mm |
| No. of Cylinders | 3 | Max. Digging Height | 3365 mm |
| Operation Weight | 1800 kg | Max. Dumping Height | 2385 mm |
| Control Style | Hydraulic Pilot Control | Max. Digging Depth | 2050 mm |
| Engine Speed | 2000 rpm | Track Grounding Length | 1230 mm |
| Standard Bucket Capacity | 0.06 m³ | Max. Vertical Digging Depth | 1725 mm |
| Min. Ground Clearance | 210 mm | Max. Digging Radius | 3860 mm |
| Overall Dimensions (L×W×H) | 3865 × 1050 × 2215 mm | Min. Swing Radius | 1720 mm |
