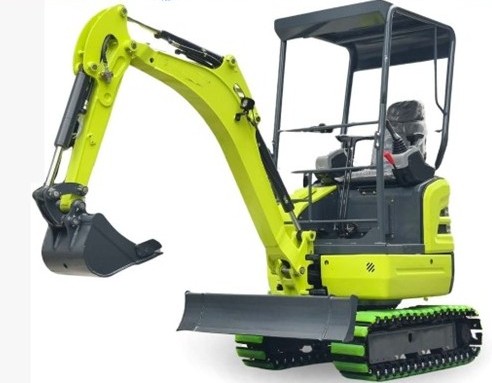

AV20 Mini Excavator
Engine Options:
Diesel Engine:
• Kubota D902 1 EPA/Euro 5
Product Dimensions
Length: 3600mm / 147.73 inches
Width: 1300mm / 57.78 inches
Height: 2450mm / 96.45 inches
Premium Components:
Multi-wayValve: ZHTE Hydraulic
Travel Motor: TAIFENG
Swing Motor: ZHTE Hydraulic
Euro 5/EPA Engine
FW20H features by Kubota D902 engines, ail meeting EPA and Euro 5 emission standards for superior performance and eco-compliance.
Hydraulic System
FW20H Equipped with swing boom and Plunger Pump,ensures higher efficiency and more responsive operation.
Precision Performance
Standard Equipped with dual-speed travel and load-sensing system for greater efficiency, energy savings, and enhanced control and durability.
Top Configuration
Standard with extendable chassis, dual cast-iron counterweights, and folding dozer blade deliver an exceptional operating experience.
Optional Features
- Closed Cabin
- Air Conditioner
- Heater
- Steel Tracks
- Hydraulic Thumb
- Hydraulic Quick Coupler
AV20 Mini Excavator
| Specification | Value | Specification | Value |
|---|---|---|---|
| Engine | Kubota D722 | Emission Standard | EPA & Euros |
| Travel Speed | 3 km/h | Rated Power | 70.2 kW |
| Track Ground Length | 7790 mm | No. of Cylinders | 3 |
| Hydraulic System Pressure | 78 MPa | Operation Weight | 7800 kg |
| Track Gauge | 790 mm | Control Style | Hydraulic Pilot Control |
| Max. Digging Height | 2955 mm | Bucket Capacity | 0.025 m³ |
| Max. Dumping Height | 2077 mm | Standard Bucket Width | 400 mm |
| Max. Digging Depth | 2077 mm | Gradeability | 30° |
| Max. Vertical Digging Depth | 7670 mm | Min. Ground Clearance | 753 mm |
| Fuel Tank Capacity | 74.5 L | Overall Dimensions (L×W×H) | 3329 × 1100 × 2267 mm |
| Hydraulic Tank Capacity | 10 L | Overall Dimension | 3600 × 1300 × 2450 mm |
| Maximum Depth of Dozer Blade | 190 mm |
